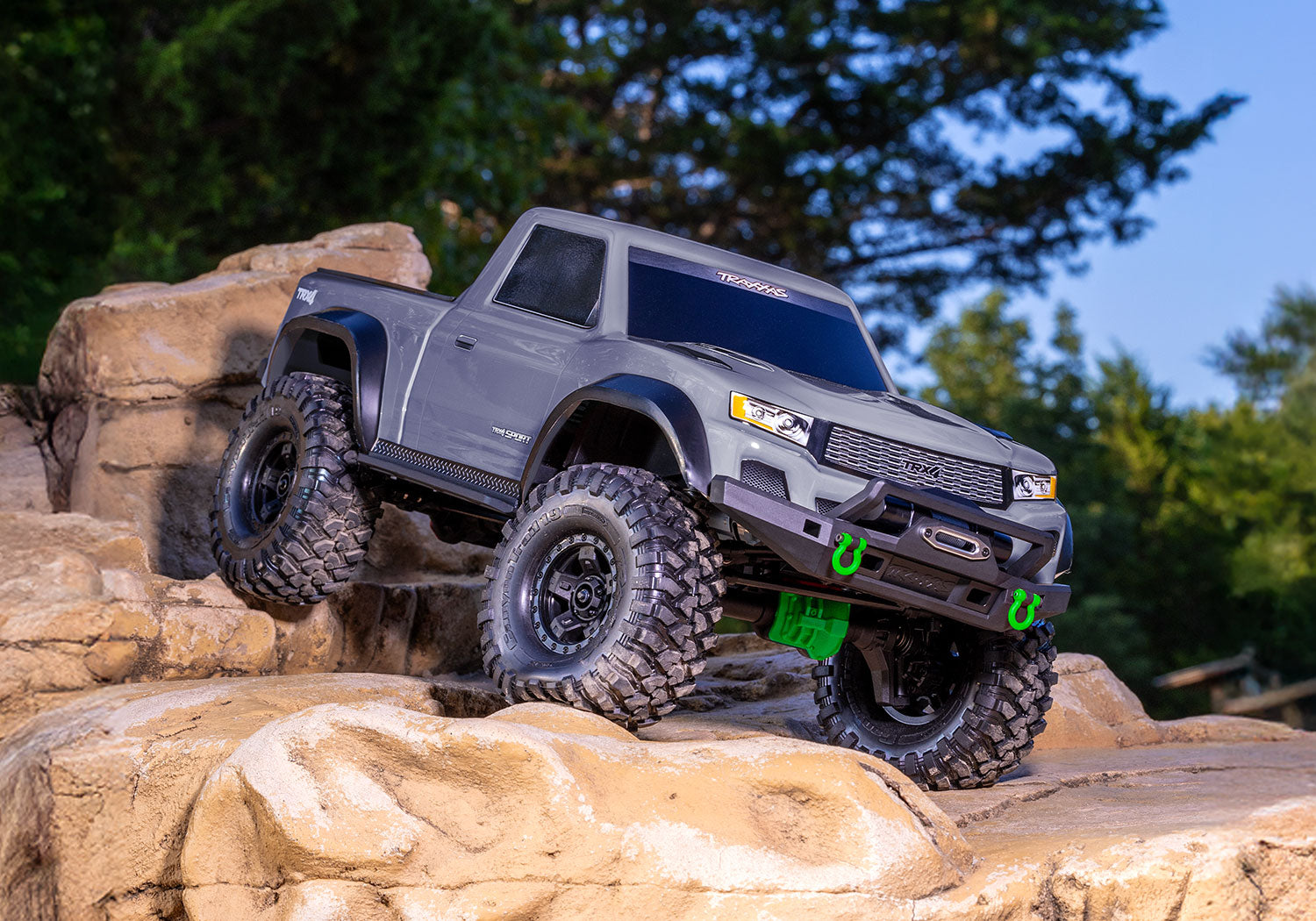

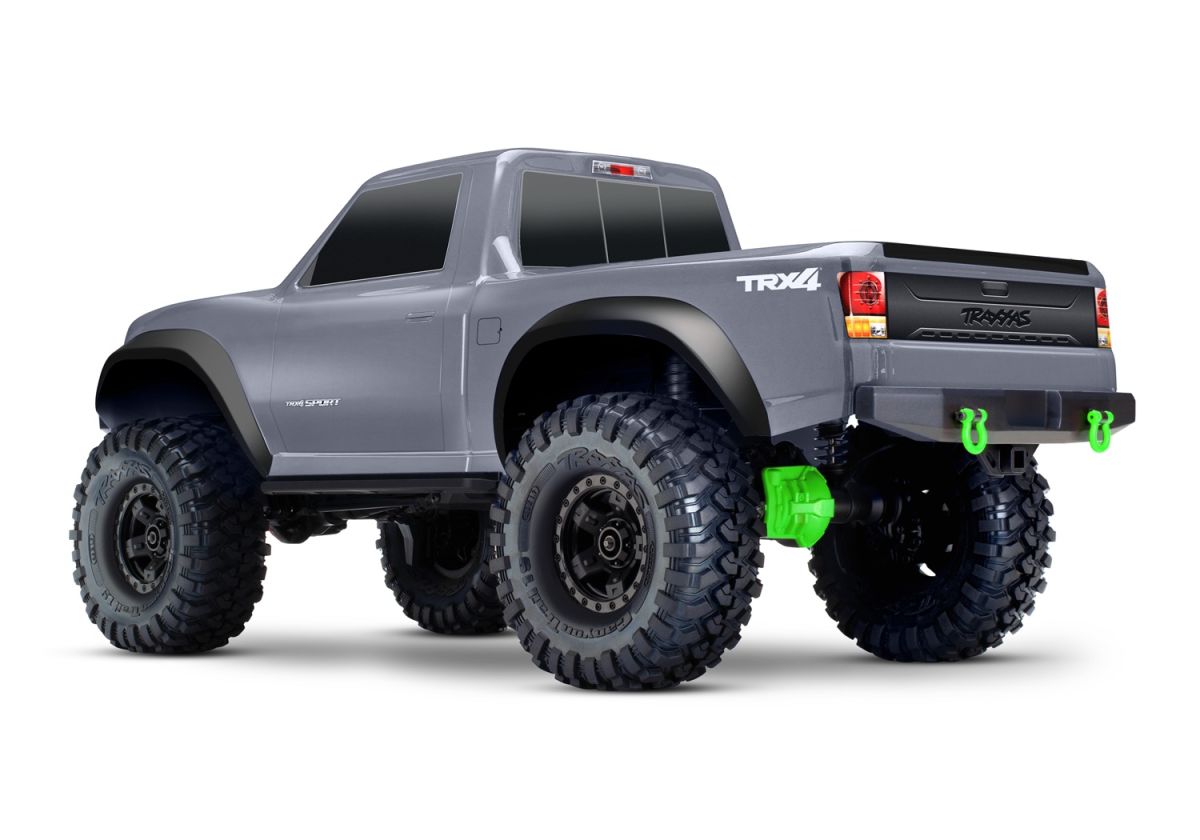

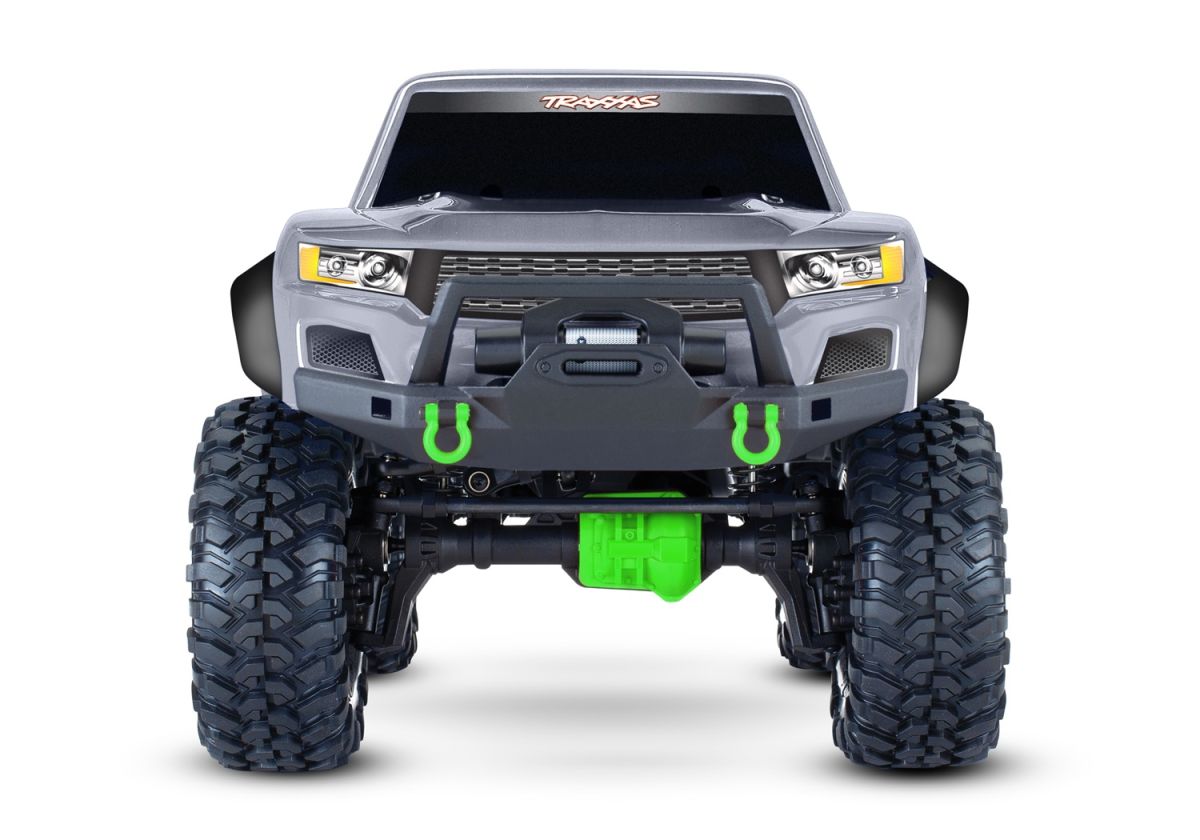

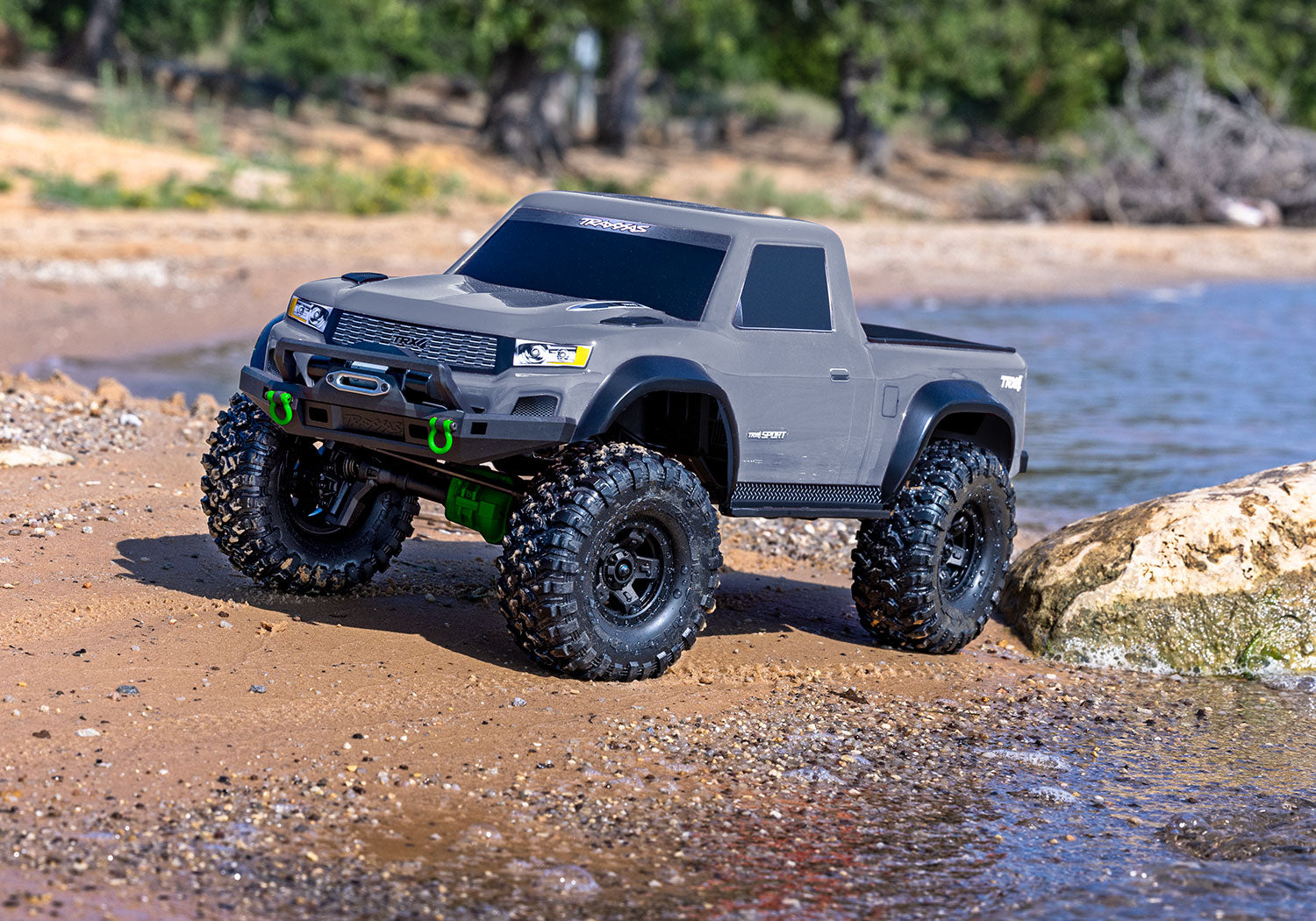

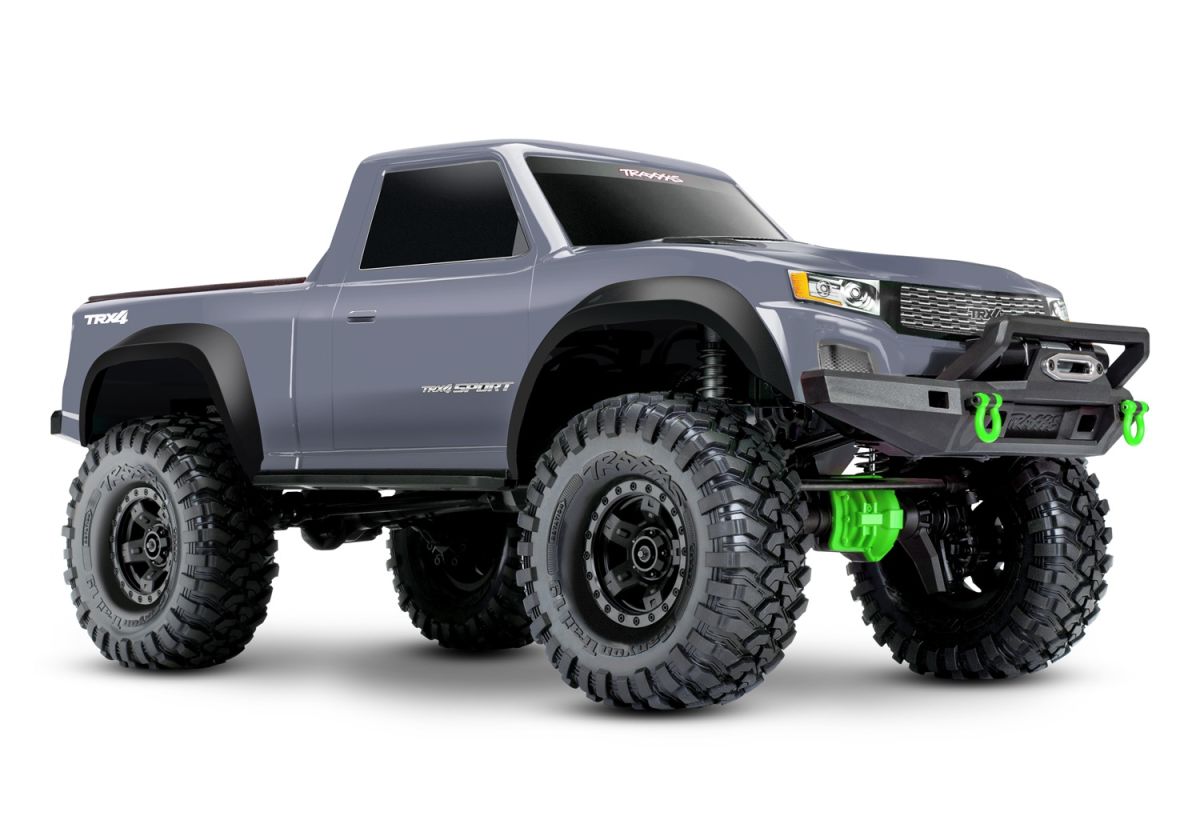

The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon® Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
What's in the Box?
- TRX-4, Ready-To-Drive® model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ™ 2.4GHz radio system
- High quality maintenance tools
What do I need?
- Batteries - TRX-4 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
- Charger - Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971)
- AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
Features:
- Chassis:
- Heavy-Duty Steel Frame Rails

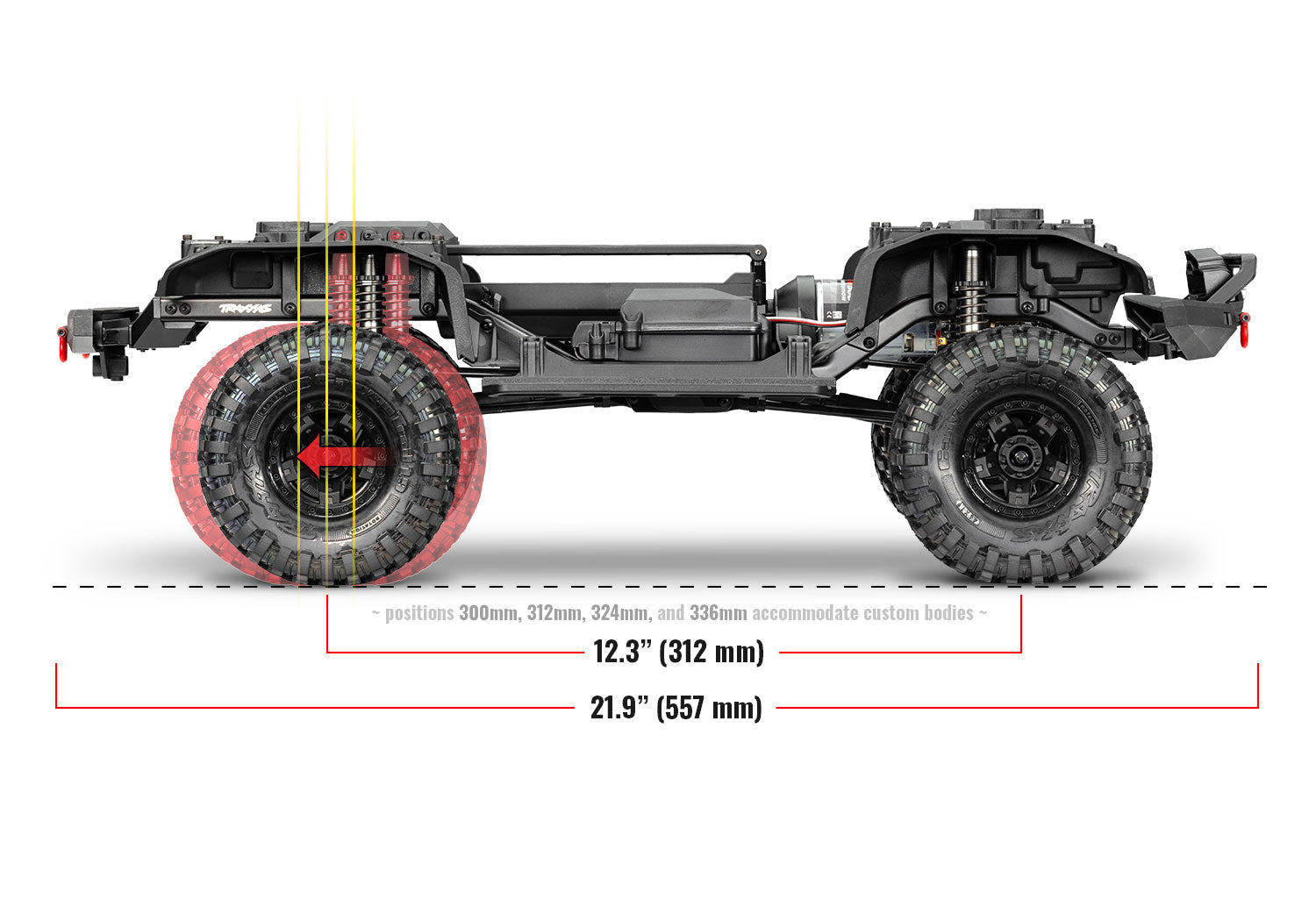

- Adjustable Wheelbase
- Molded Wire Retainers
- Dual Battery Tray
- Floor Pans

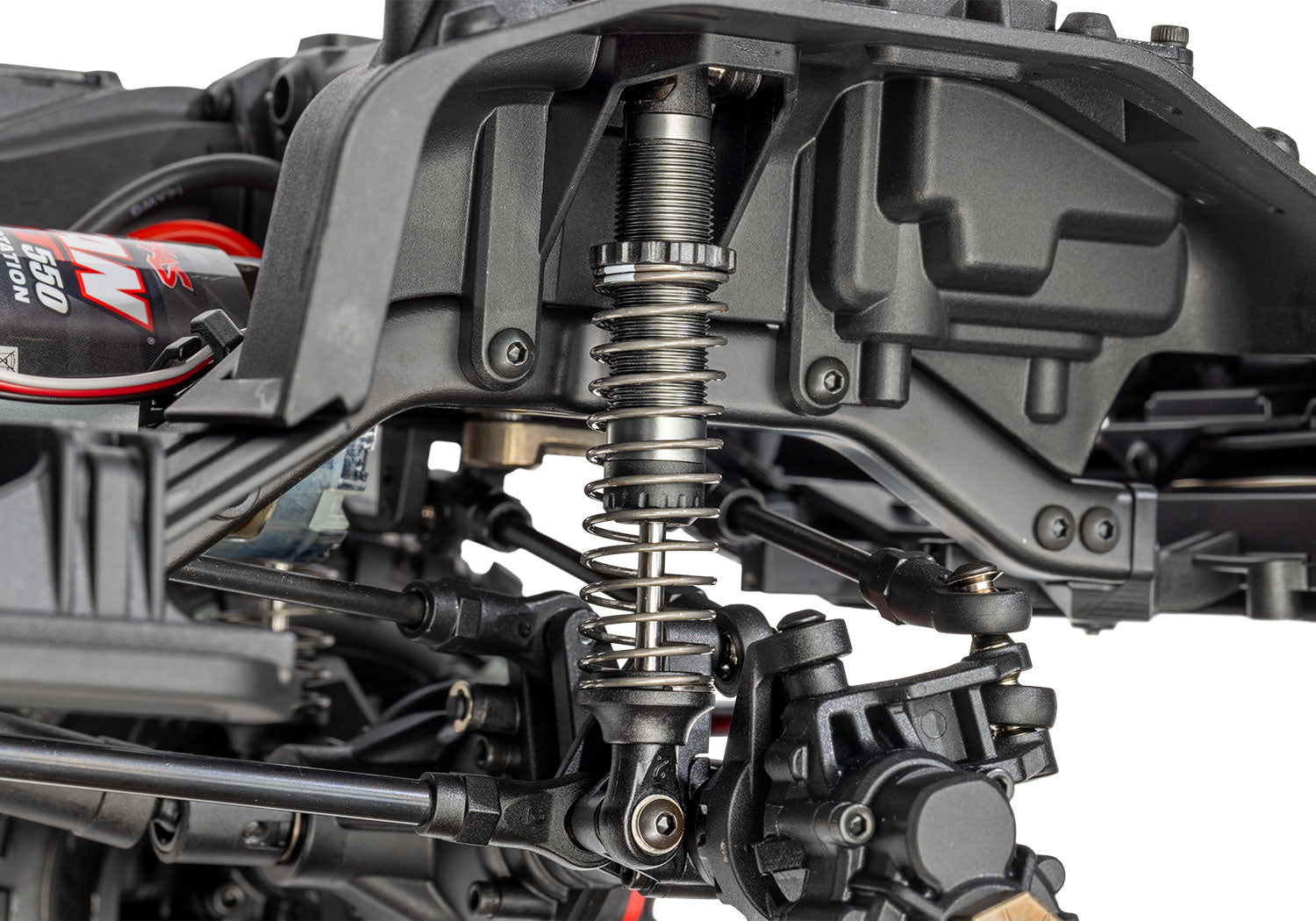

- Aluminum Scale Shocks
- Heavy-Duty Steel Links
- Precision Hex Hardware
- Driveline:

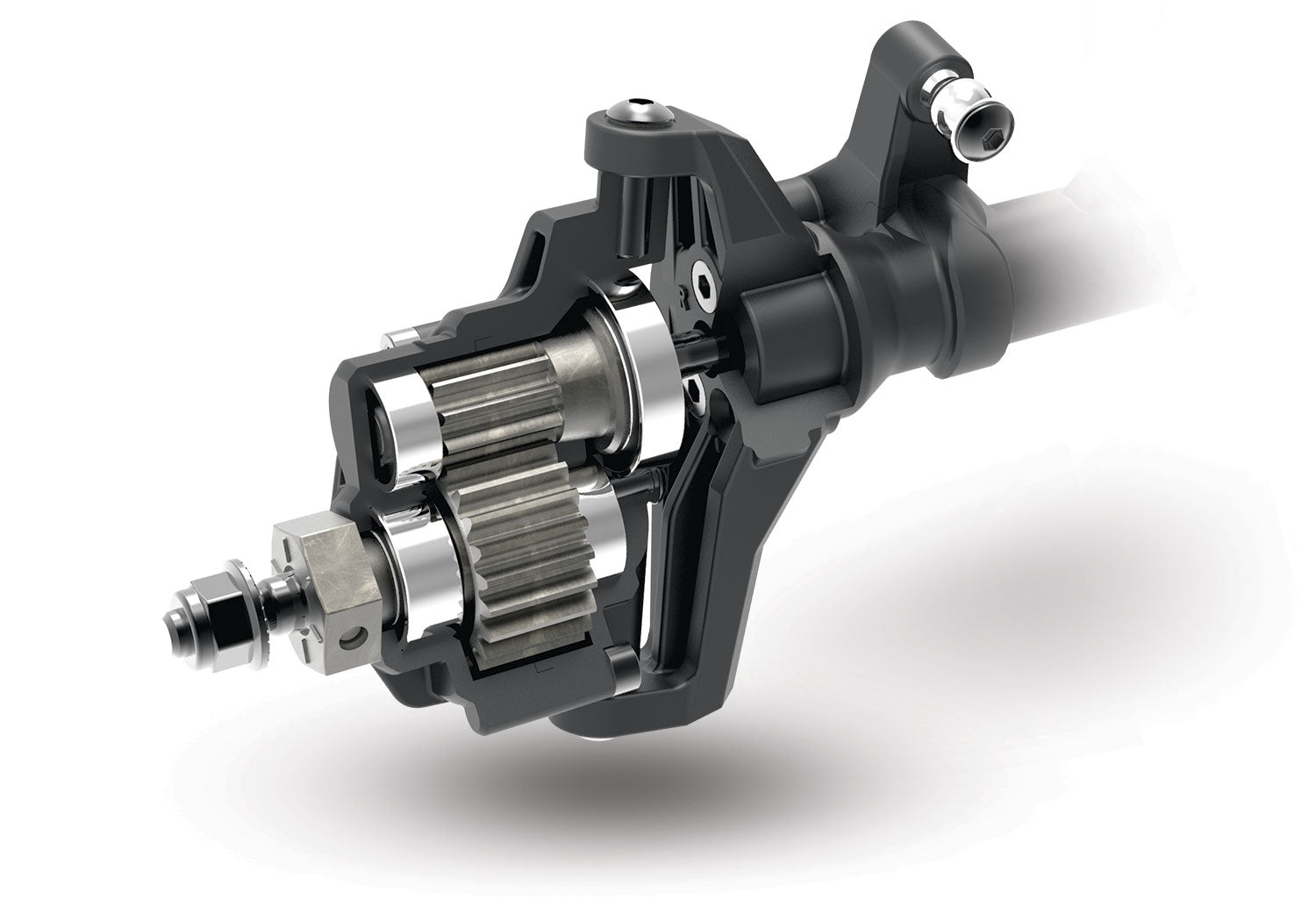

- Portal Axles
- Torque Twist Eliminated
- Locked Differentials

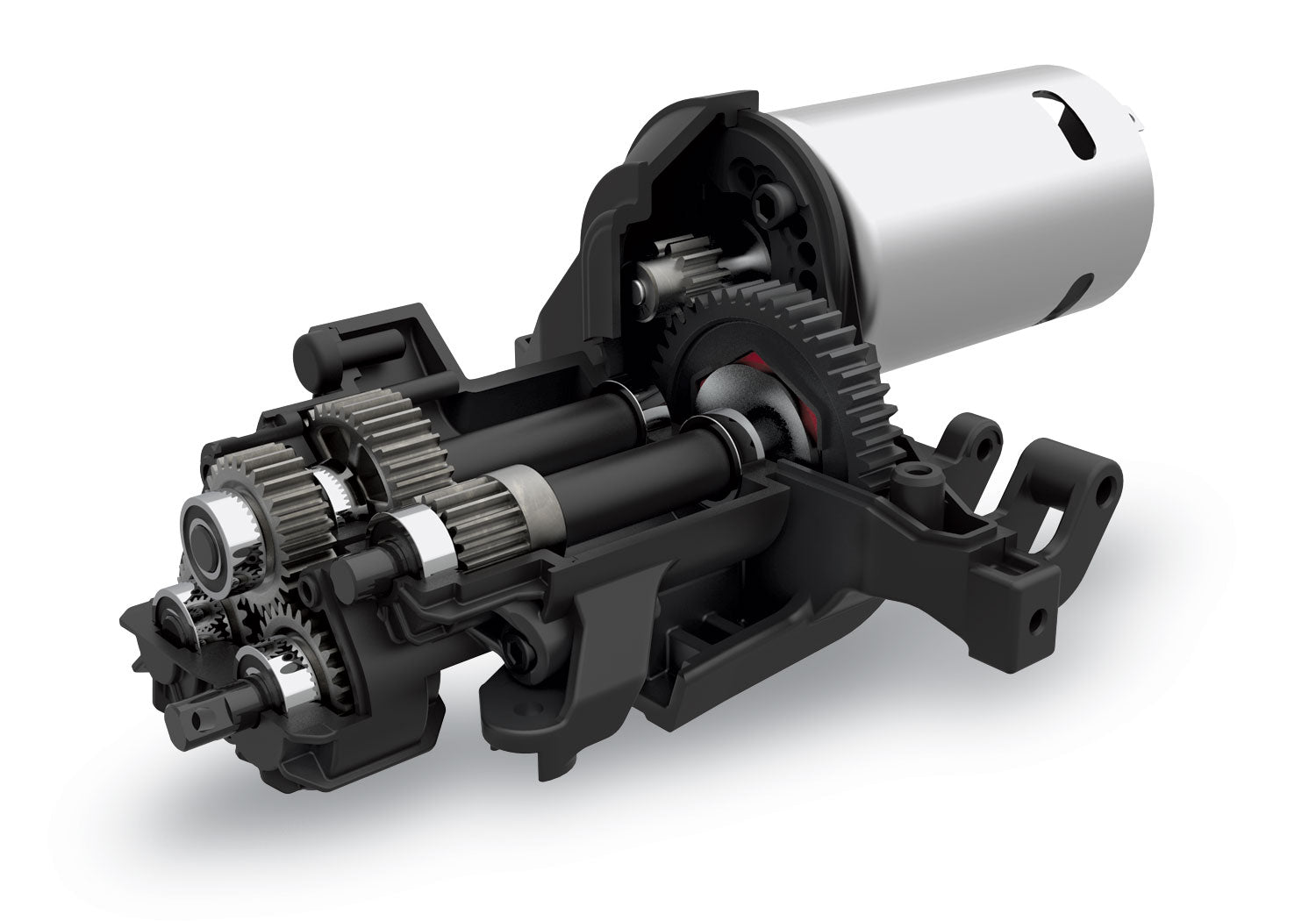

- Steel Gear Transmission
- Hardened Steel U-Joints
- Twin Friction Plate Slipper Clutch
- Sealed Ball Bearings
- Geometry:
- Raised Center Driveshafts and Suspension Links
- High Steering and Drag Links
- 45-Degree Steering Angle
- Extreme Approach Angles
- High Ground Clearance
- Front Motor Design
- Electronics:
- XL-5 HV ESC
- Titan 21T 550 Motor
- Waterproof Metal Gear Servo
- TQ™ 2-Channel Radio System
Specifications:
Length: 21.93 inches (557mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 5.79lb (2.63kg)
Height: 9.47 inches (241mm)
Wheelbase: 12.28 inches (312mm)

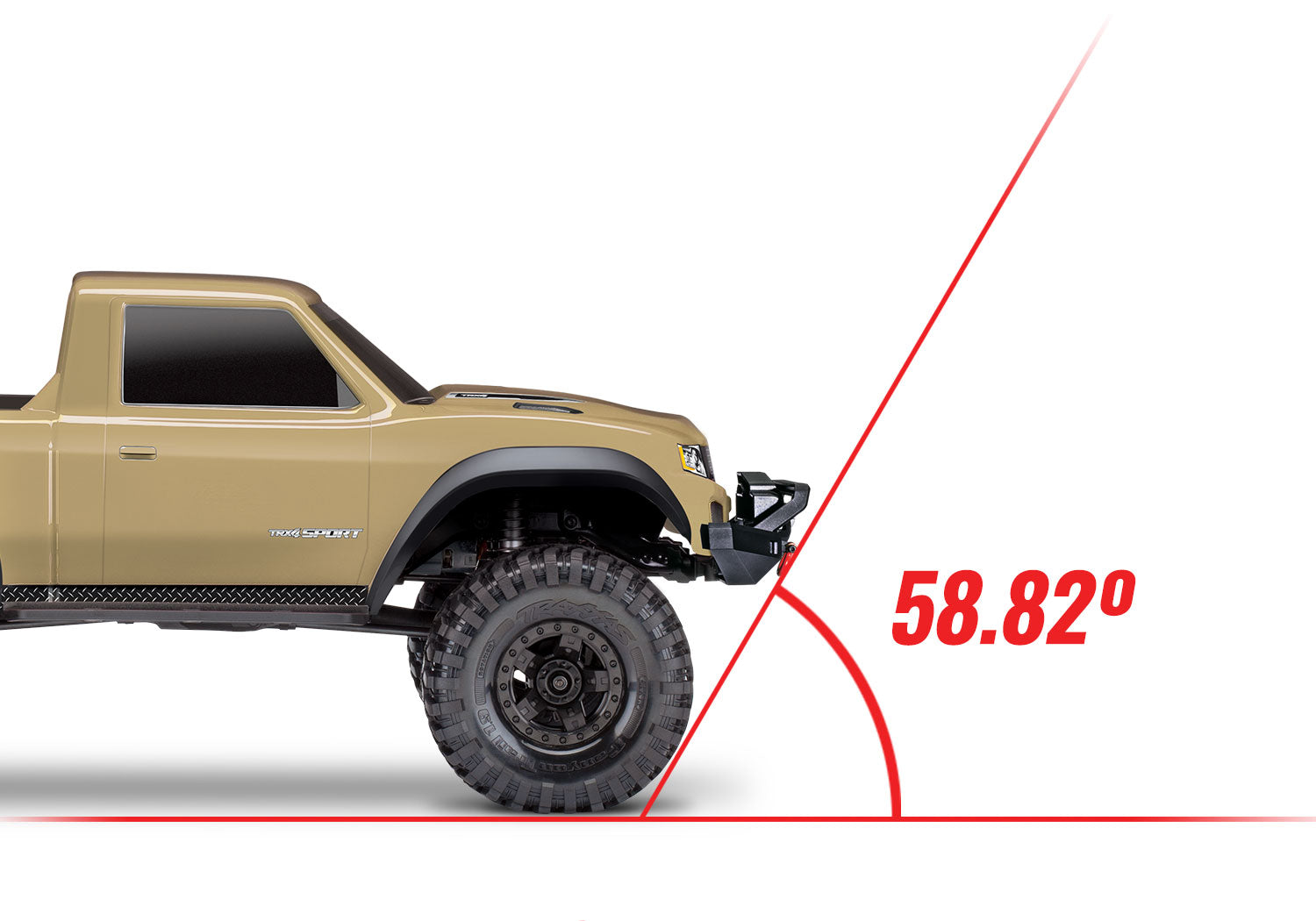

Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 58.93°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H
