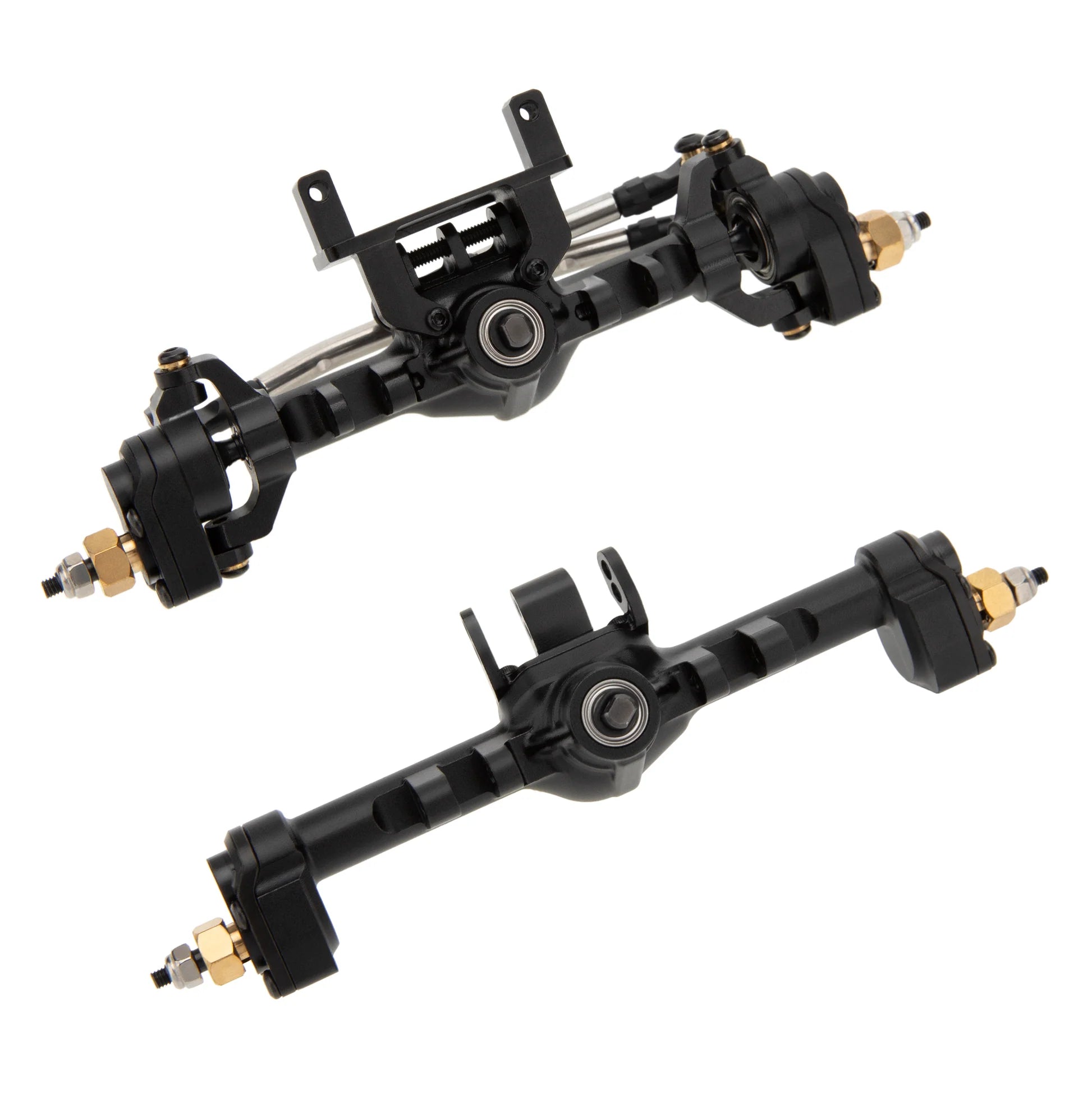

MEUS Racing aluminum alloy TRX4M front and rear portal axles upgrade ground clearance +7MM for 1/18 TRX4M RC Cars
Key Features:
- 1. Made of high-quality aluminum alloy, which is sturdy and durable.

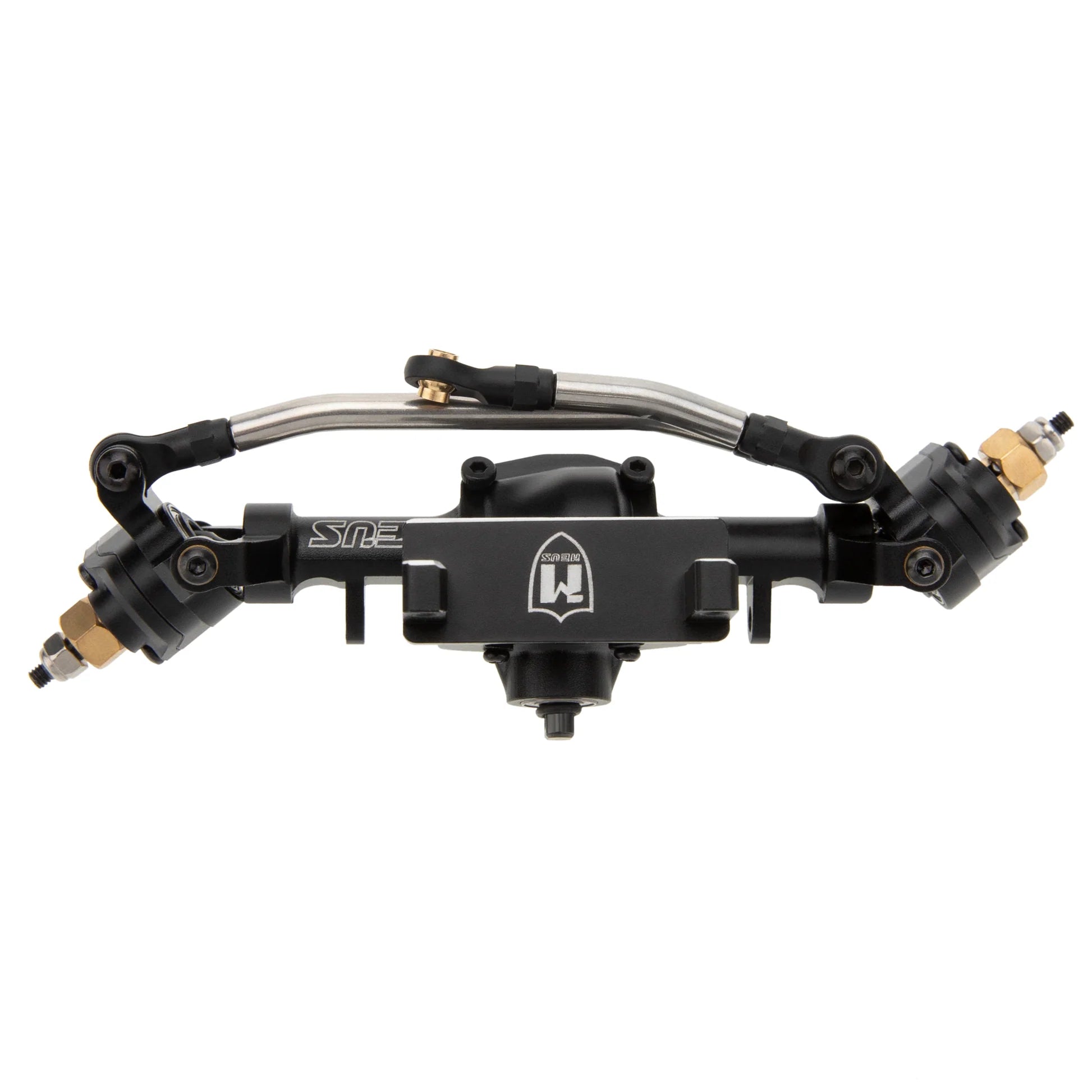

- 2. The front axle is equipped with aluminum alloy steering knuckles, which reduce the overall weight of the RC car, making the vehicle more flexible and offering better acceleration and steering.

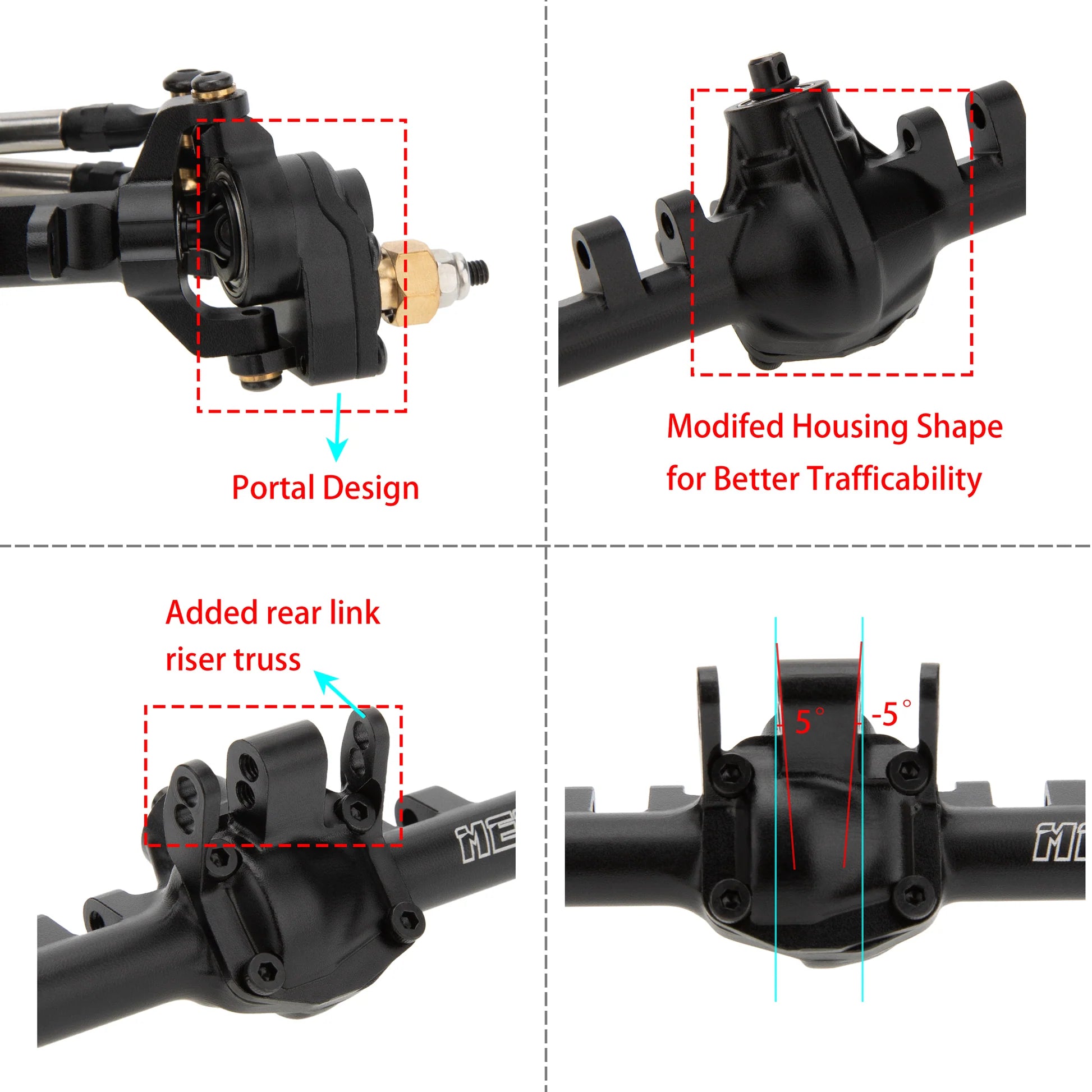

- 3. Portal metal gear structure, 12-16T reduction ratio 1.33:1, 33% reduction. And provide 7 mm ground clearance. Better through obstacles.

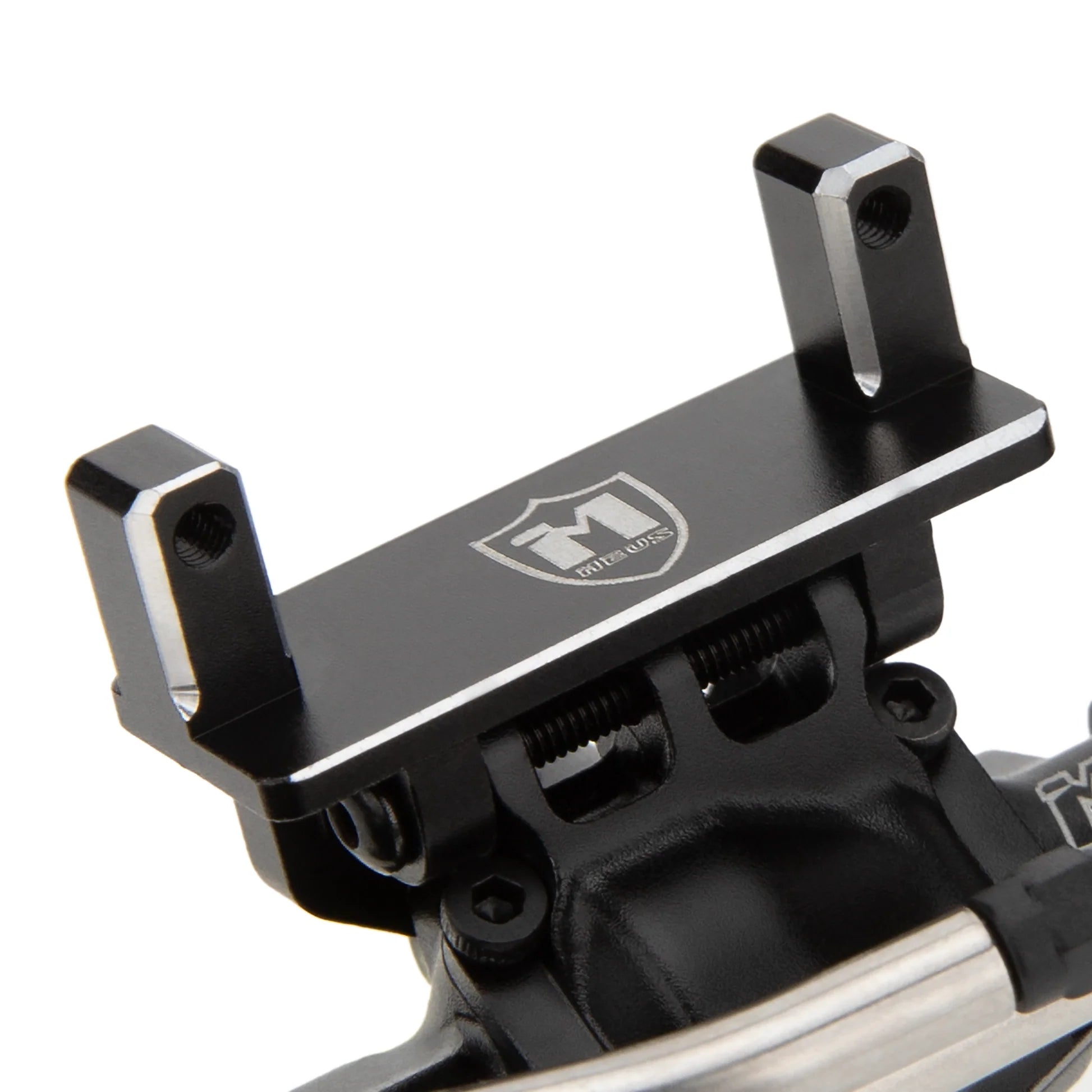

- 4. Equipped with a horizontal servo bracket and a lower center of gravity.
- 5. The front and rear axles are +4mm wider on both sides, which provides better stability and climbing performance.
- 6. The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
- 7. The TRX4M Portal axles also suitable for TRX4M High Trail.
Specification:
- Axle Material: aluminum alloy
- Steering Knuckle Material: aluminum alloy
- Diff Cover Material: aluminum alloy
- Dogbone shafts Material: hardened steel
- Front and rear axle diff gears: 12-24T
- Front axle weight: 69.3g(includes steering links)
- Rear axle weight: 43.7g
- Maximum steering angle: 35°
- Portal gear: 12-16T

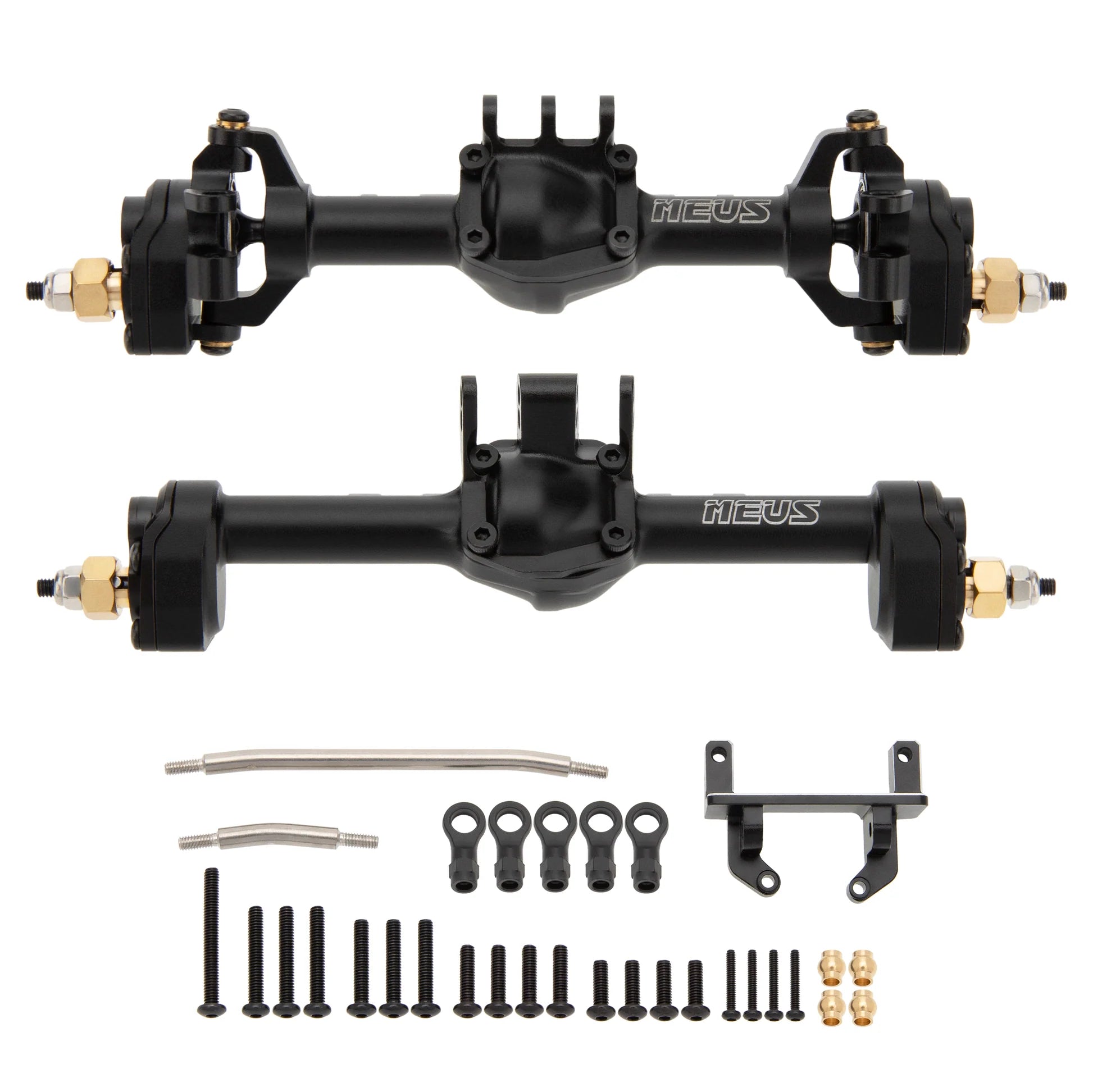

Product List:

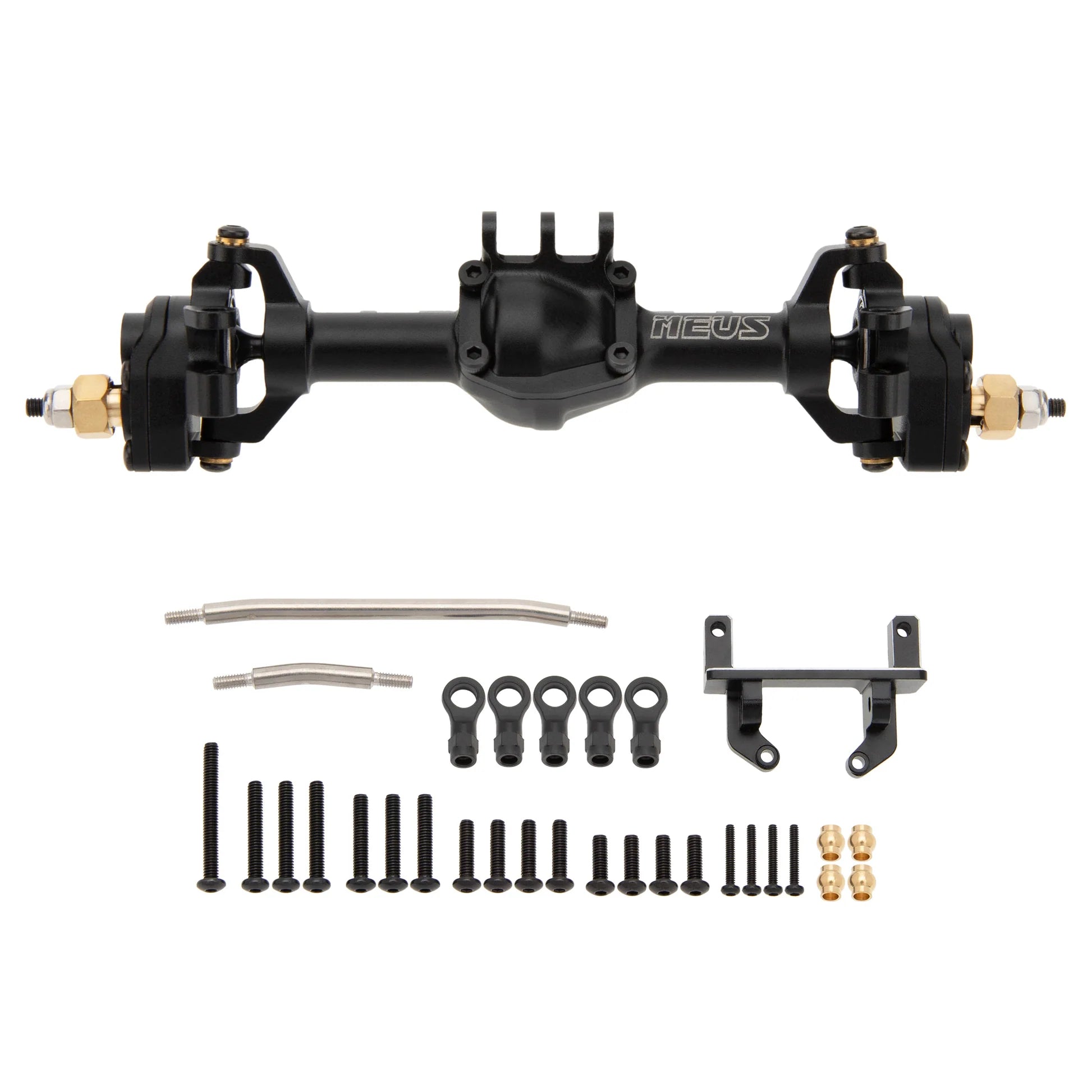

- 1 × TRX4M Front portal axle;
- 1 × TRX4M Rear portal axle;
- 3 × Steering links
- 1 × Servo mount
- 1 × Screw set
