MEUS Racing Metal Isokinetic 3-section CVD Shafts for 1/10 Vanquish H10 Optic Isokinetic Front Rear Axle Upgrade Parts.
Key Features:

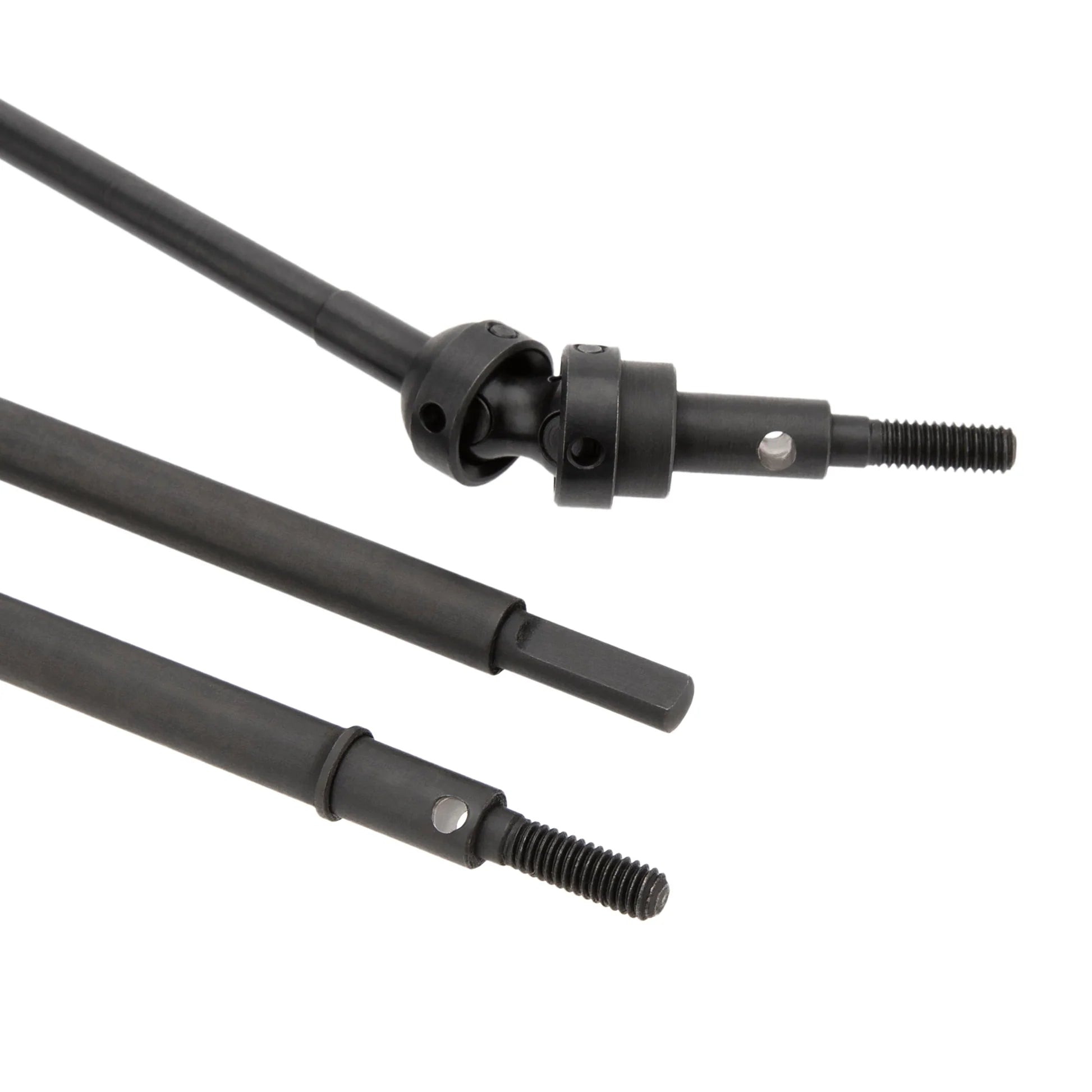

- 1. This is the MEUS Racing Isokinetic 3-Section CVD axle shaft, installed inside car axles for Vanquish H10 Optic 1:10 scale car models.
- 2. The Isokinetic 3-section CVD structure is designed for smooth transmission and reduces jerks while turning at a large angle, providing a better driveline system for RC car models.
- 3. The 3-section CVD axle shaft adopts a transmission assembly with a constant velocity drive for better flexibility and stability.
- 4. The front and rear CVD output shaft diameters are 6mm, which improves durability and long service life.
- 5. This CVD shaft set is suitable for MEUS Racing H10 optic front and rear axle housings and the stock Vanquish H10 Optic axles.
Specifications:
- Material: High-quality Steel
- 2 front shaft weight: 44g
- 2 rear shaft weight: 41.6g

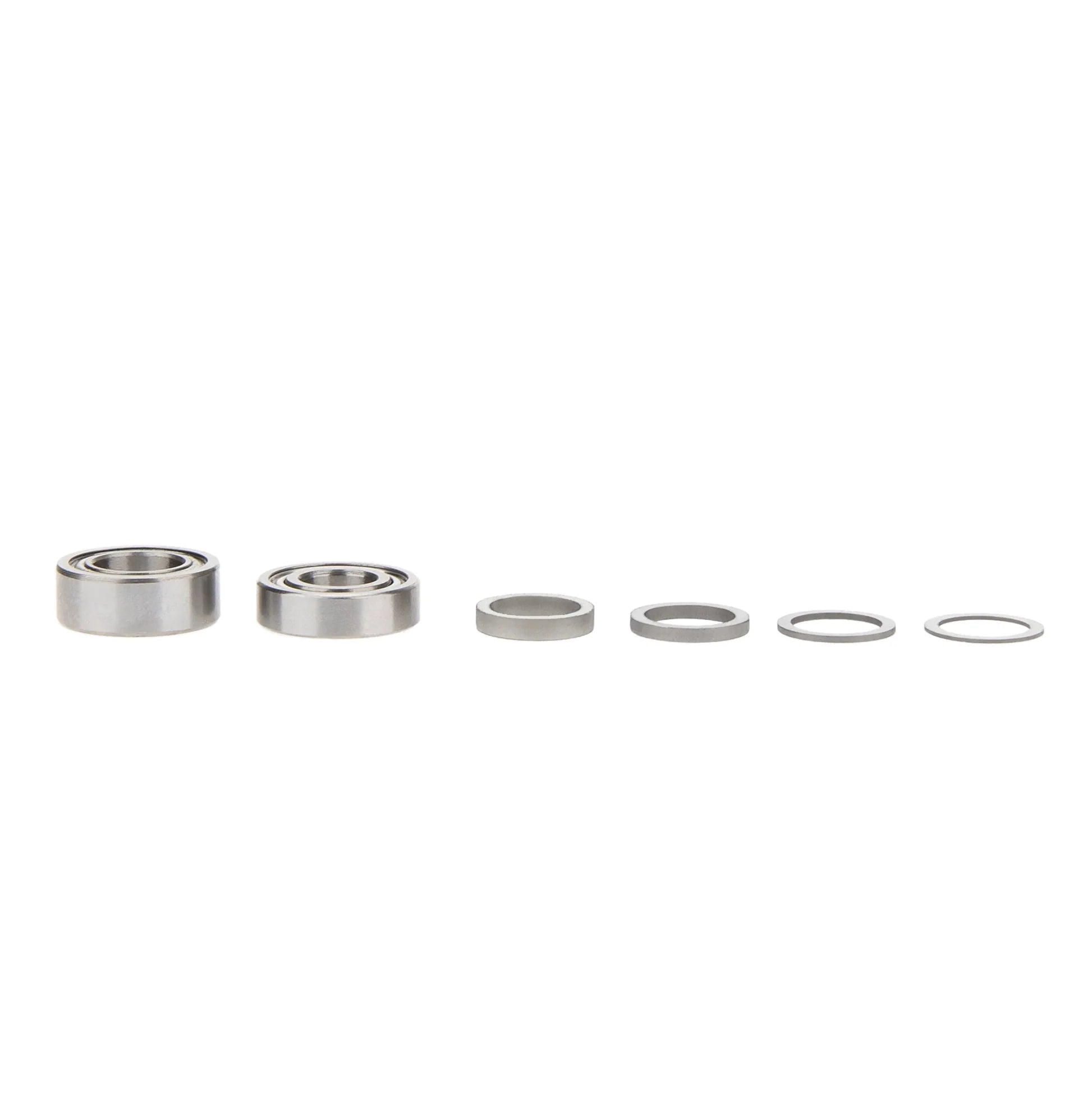

- Bearing size: 6*11*4mm, 5*11*4mm
- Round head screw size: 3*5mm
- Gasket size: 6*8*1mm, 6*8*1.5mm, 6*8*0.3mm, 6*8*0.5mm
- Hexagonal connector size: 6mm
- Screw pin: M3*11mm

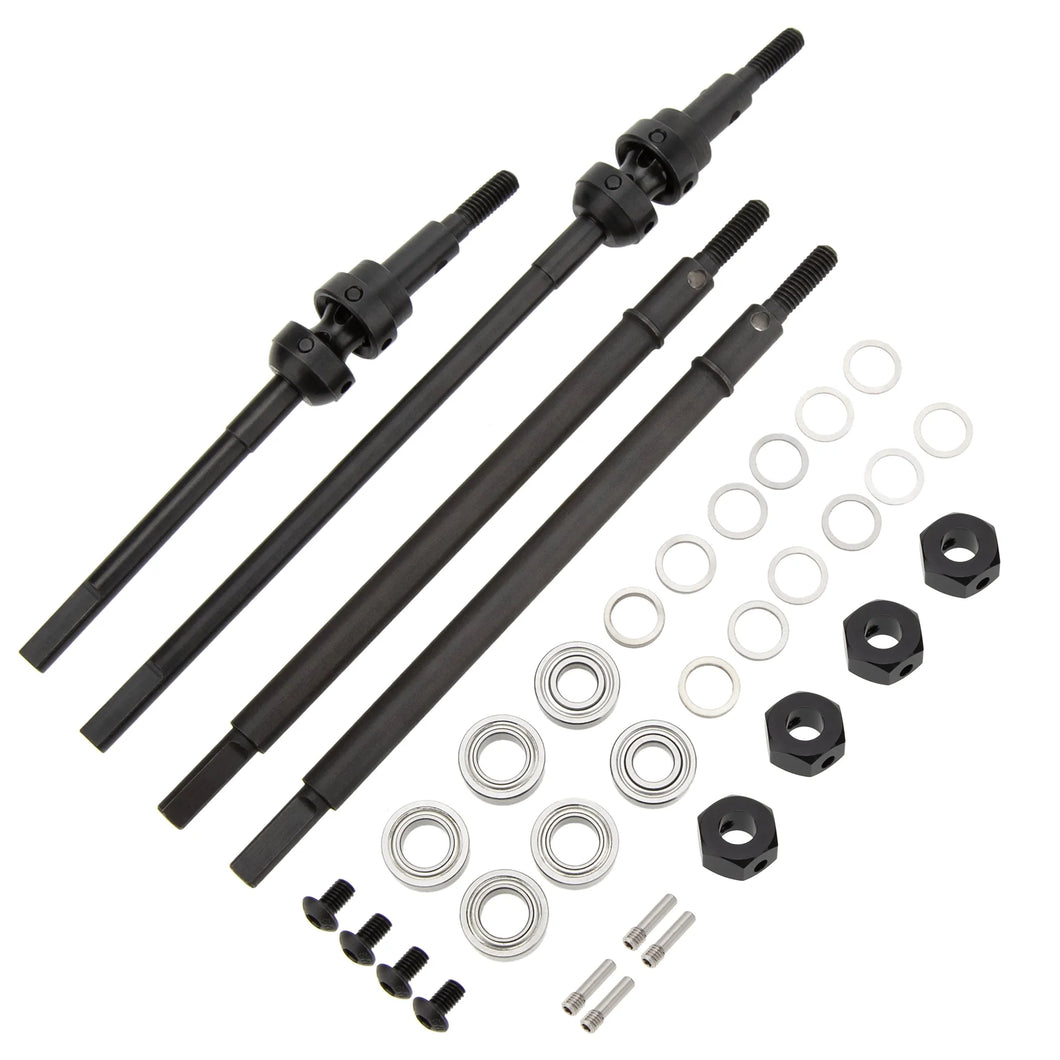

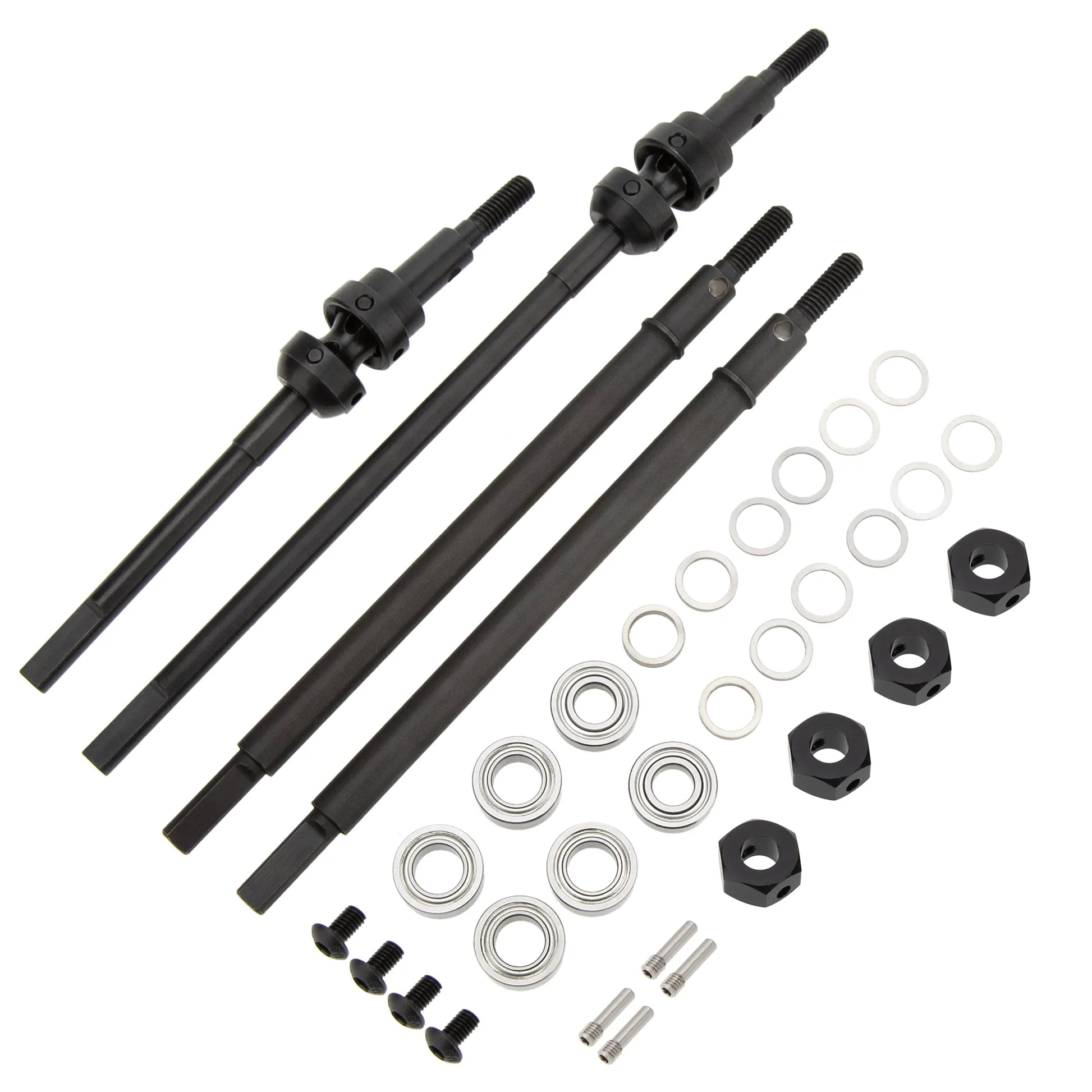

Package List:
- 2 × Front axle CVD shafts

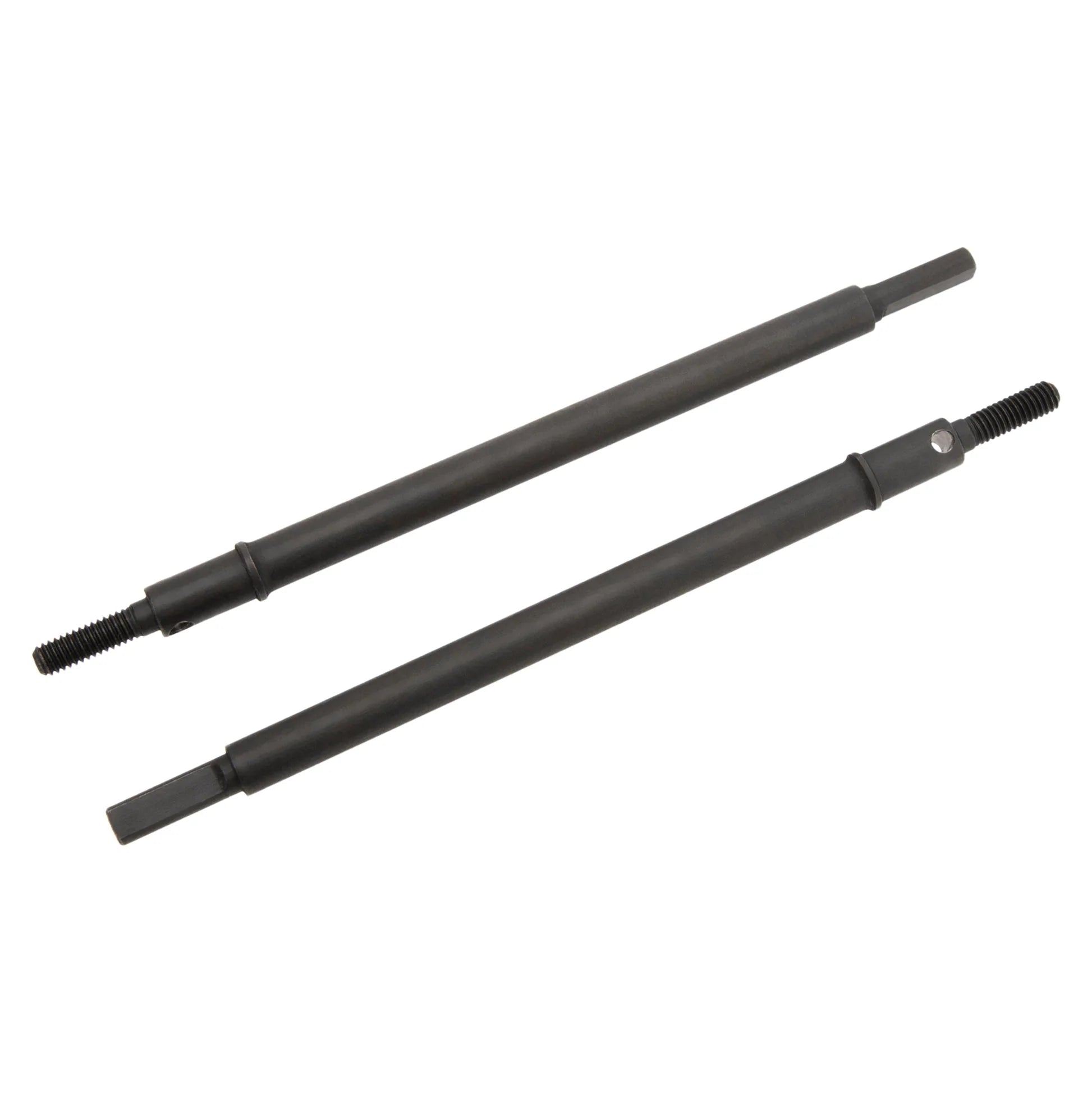

- 2 × Rear axle shafts
- 4 × 6*11*4mm bearings
- 2 × 5*11*4mm bearings
- 4 × 3*5mm round head screws
- 2 × 6*8*1mm gaskets
- 2 × 6*8*1.5mm gaskets
- 4 × 6*8*0.3mm gaskets
- 4 × 6*8*0.5mm gaskets
- 4 × 6mm hexagonal connector
- 4 × M3*11mm screw pin
