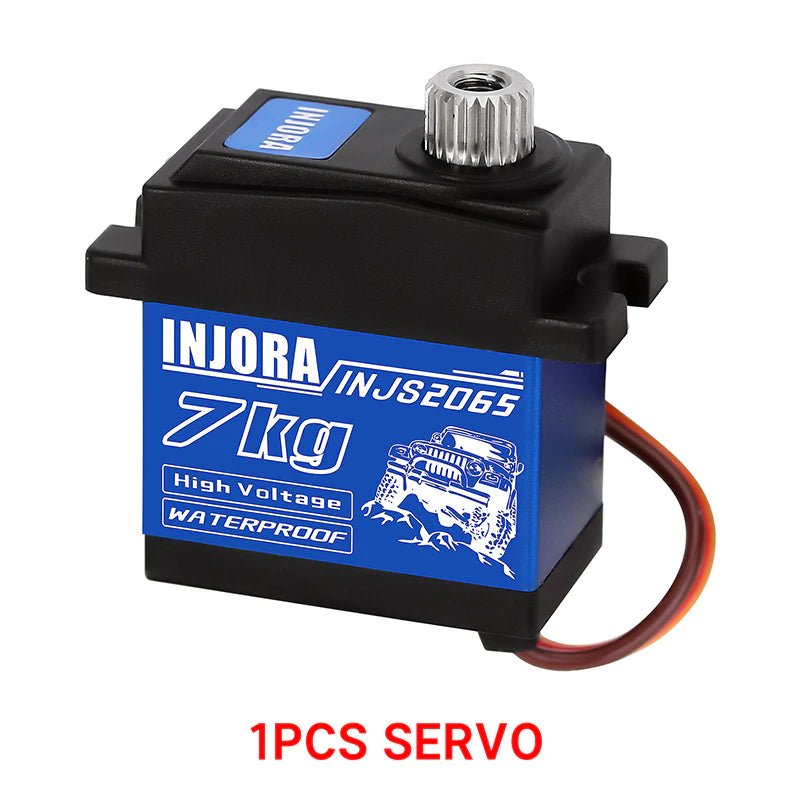

INJS2065 7KG 2065 Digital Servo Waterproof High Voltage Micro Shift Servo For 1/10 RC Crawler Car SCX10 III TRX4 TRX6
Suit for:
- 1/10 Axial SCX10 III
- 1/10 Traxxas TRX-4 TRX-6
- 1/24 Axial SCX24 (we are making servo mounts now)
- etc.
Features:
- High voltage and digital 2065 servo

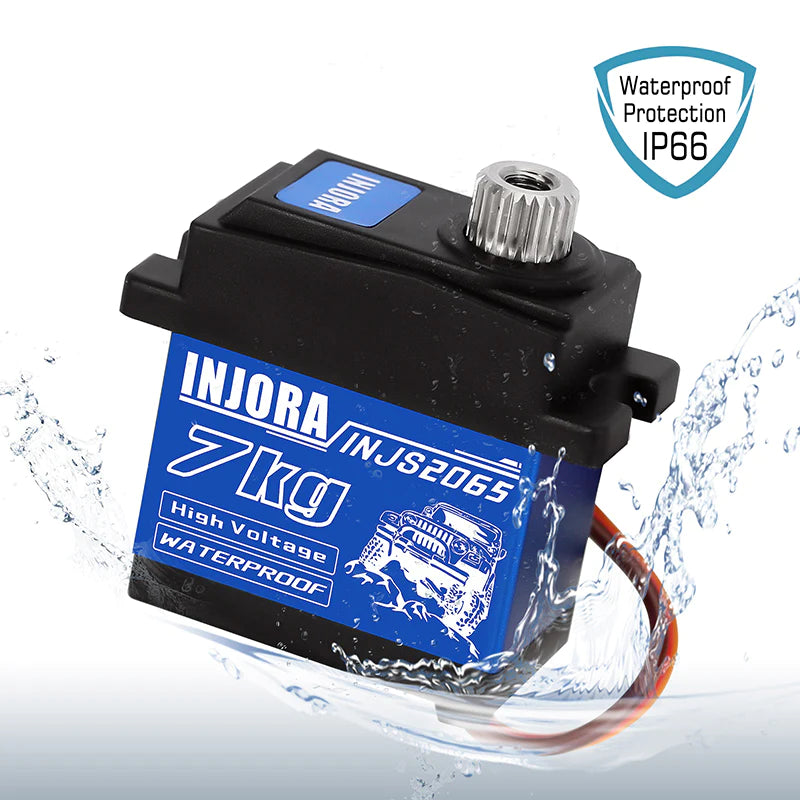

- IP66 Waterproof design

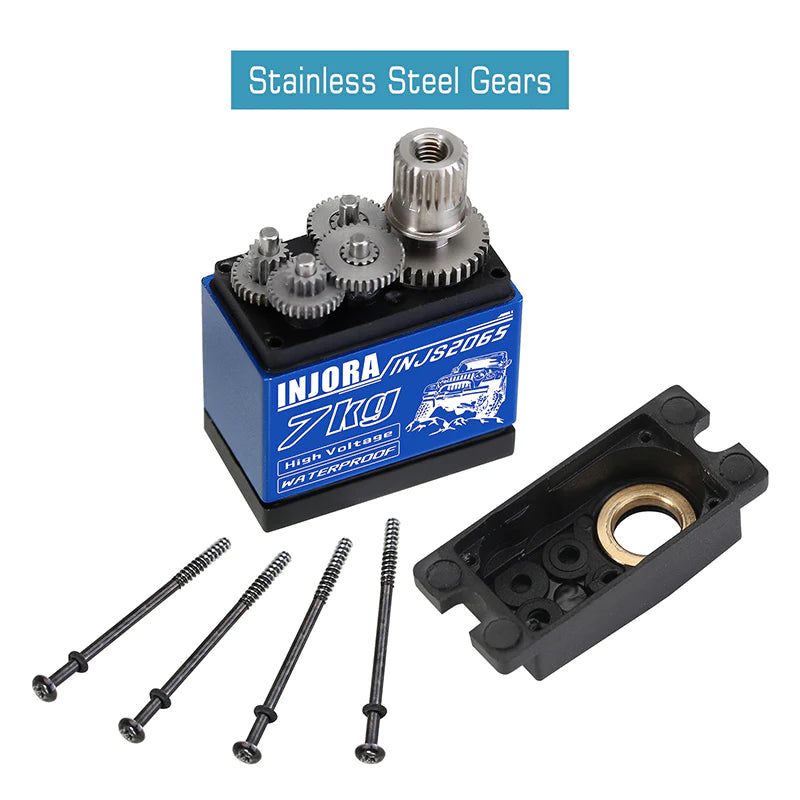

- Stainless steel gears and lower noise
- Upgrade for TRX-4 TRX-6 diff lock servo
- Upgrade for Axial SCX10 III dig and shift Servo

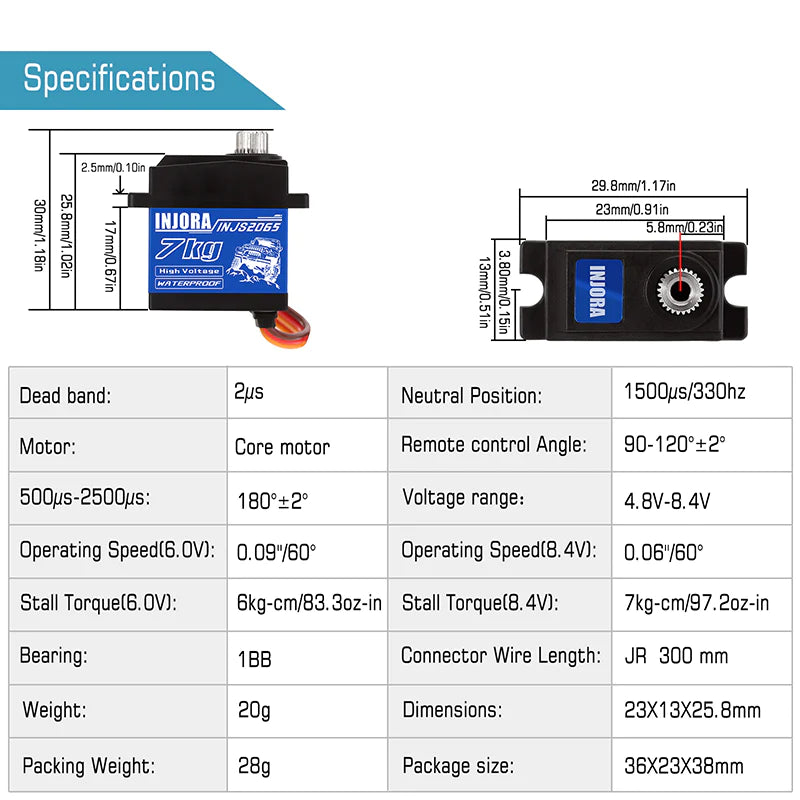

- Item Name: INJS2065 Servo
- Dead band: 2μs
- Neutral Position: 1500μs/330hz
- Motor: Core Motor
- Remote Control Angle: 90-120°±2°
- 500-2500μs Angle: 180°±2°
- Voltage Range: 4.8V-8.4V
- Operating Speed(6.0V): 0.09''/60°
- Operating Speed(8.4V): 0.06''/60°
- Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
- Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
- Dimensions: 23*13*25.8mm
- Weight: 20g
- Connector Wire Length: JR 300 mm
- Bearing: 1BB
- Packing Weight: 28g
- Package size: 36X23X38mm
