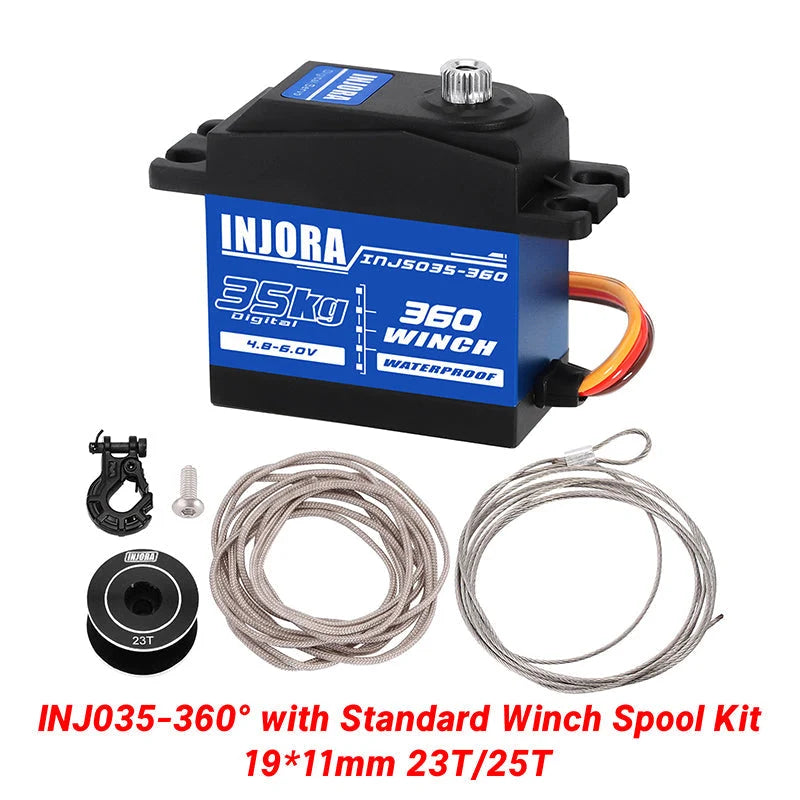

INJORA 35KG Waterproof INJS035-360 Digital Servo 360° Steering Winch Wheel for RC Crawler Car Boat Model
Suit for
- 1/10 SCX10 PRO
- RC Car Robot Model
Features:
- 360 degree continuous rotation
- High performance digital standard

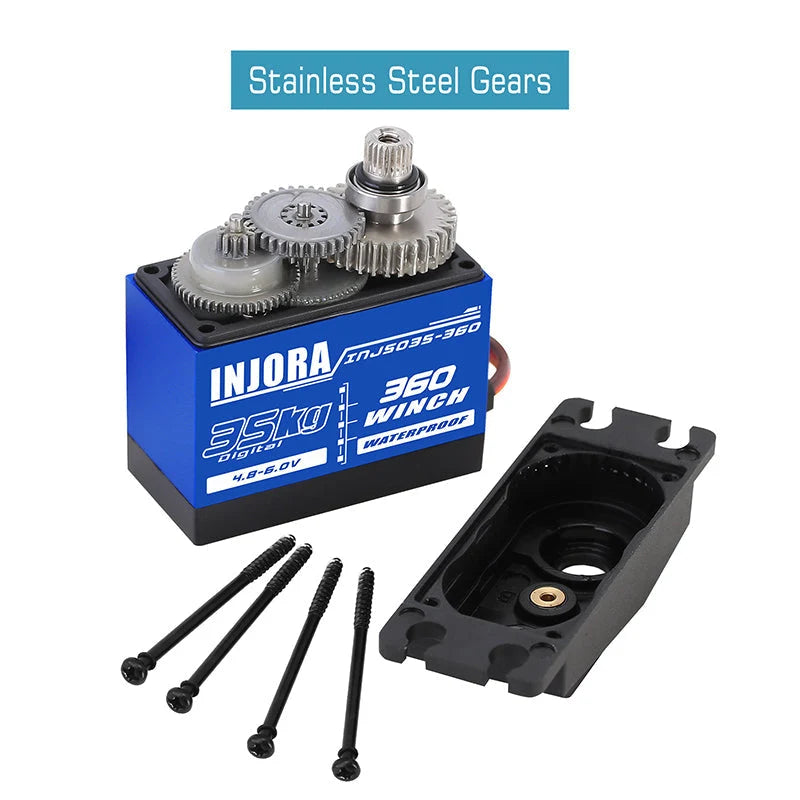

- Reinforced metal gears and lower noise
- The 19*11mm spool has 23T on one side and 25T on the other.

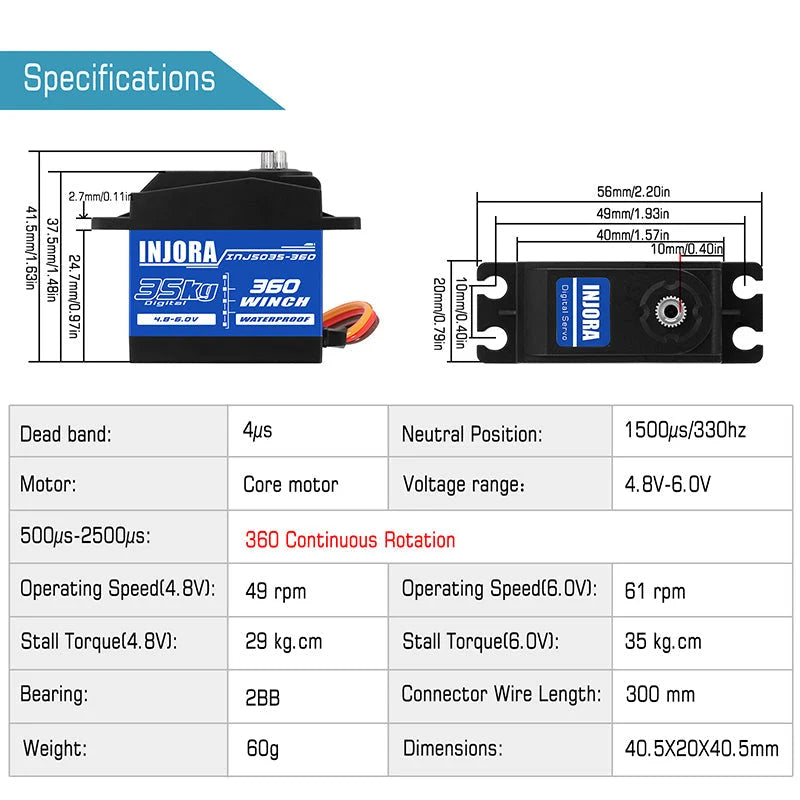

INJS035-360 Servo Specifications:
- Quantity: 1pcs
- The Dead Band: 4μs
- Neutral position: 1500μs / 330hz
- Motor: Core motor
- 500-2500us Angle: 360°
- Voltage range : 4.8V-6.0V
- Operating Speed(4.8V): 49rpm
- Operating Speed(6.0V): 61rpm
- Stall Torque(4.8V): 29kg.cm
- Stall Torque(6.0V): 35kg.cm
- Bearing: 2BB
- Weight: 60g
- Dimensions: 40.5x20x40.5mm (1.59x0.79x1.59in)
- Length of Connector Cable: JR 300mm
- Spline: Φ5.9 25T

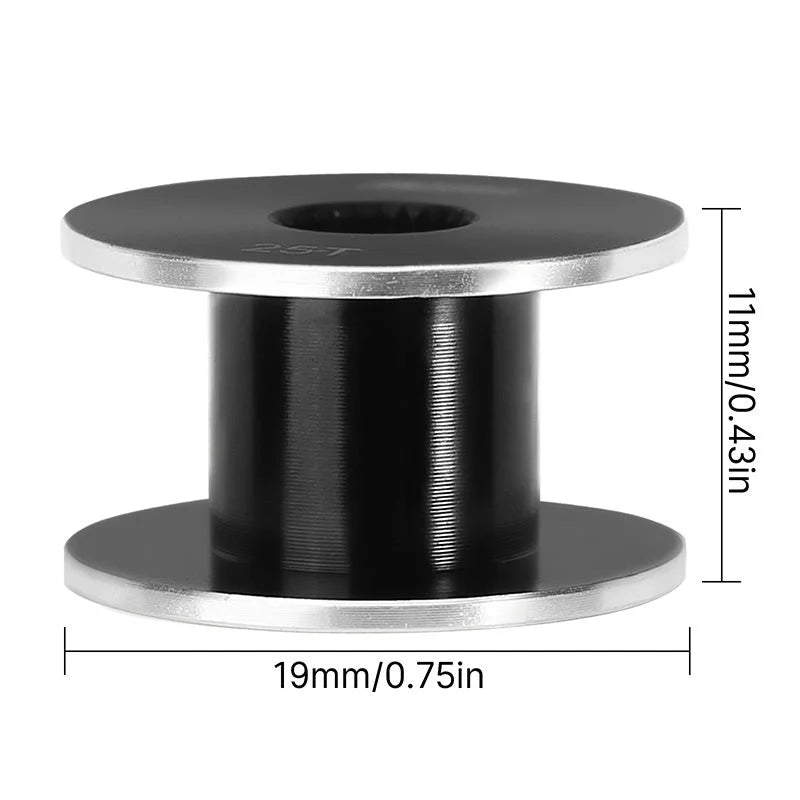

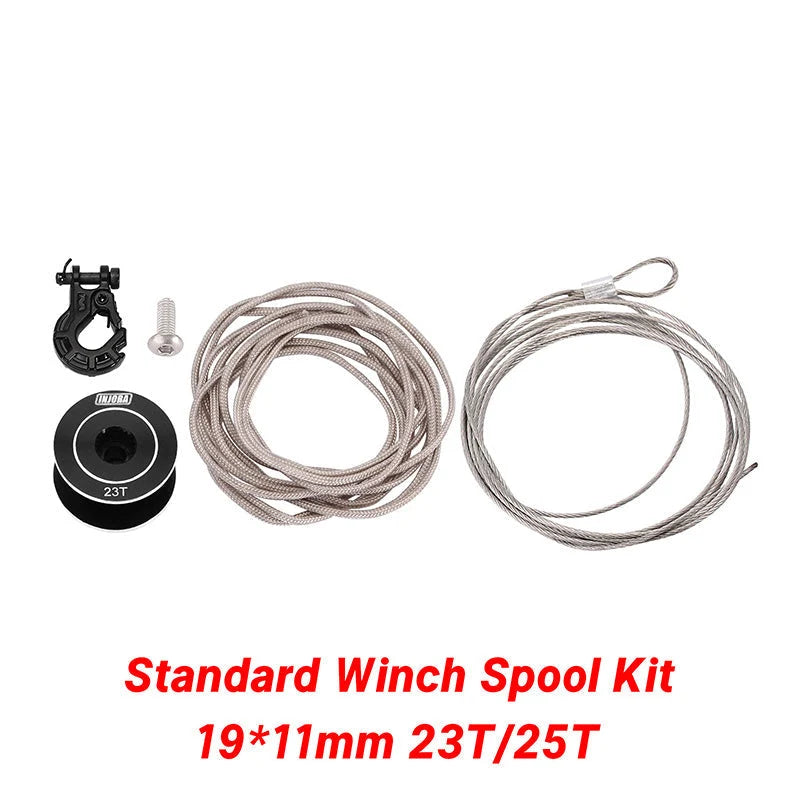

Winch Spool Specifications:
- Materials: Aluminium
- Kind: Standard (19*11mm), Low Profile(16*8mm)
- Standard Winch Spool Teeth: 23T/25T
- Low Profile Winch Spool Teeth: 25T
- Mounting Screw: M3
- Nylon Rope Length: 116cm (45.67in)
- Steel Rope Length: 96cm (37.80in)
