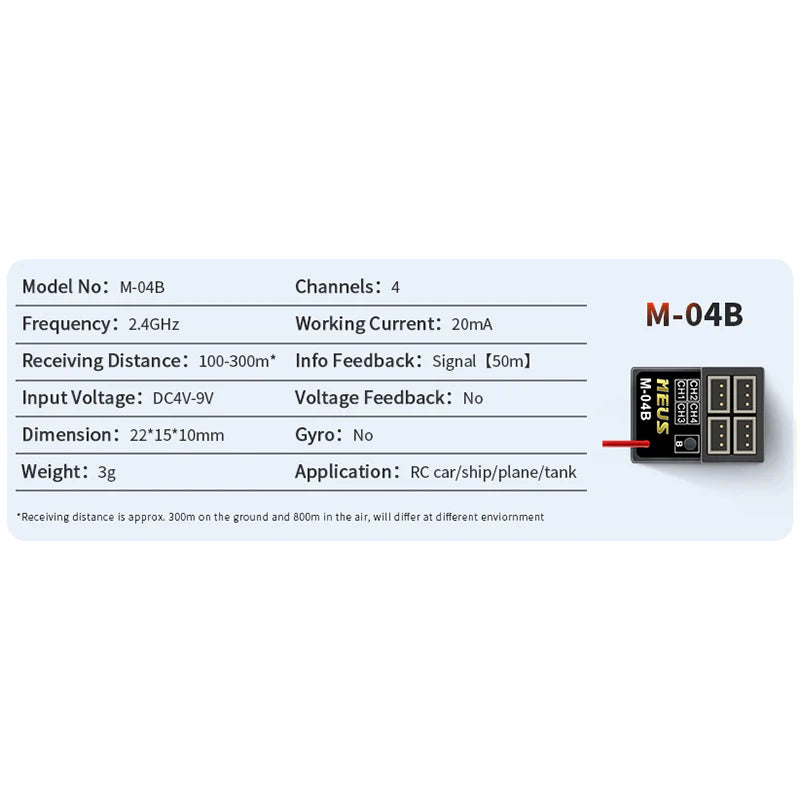

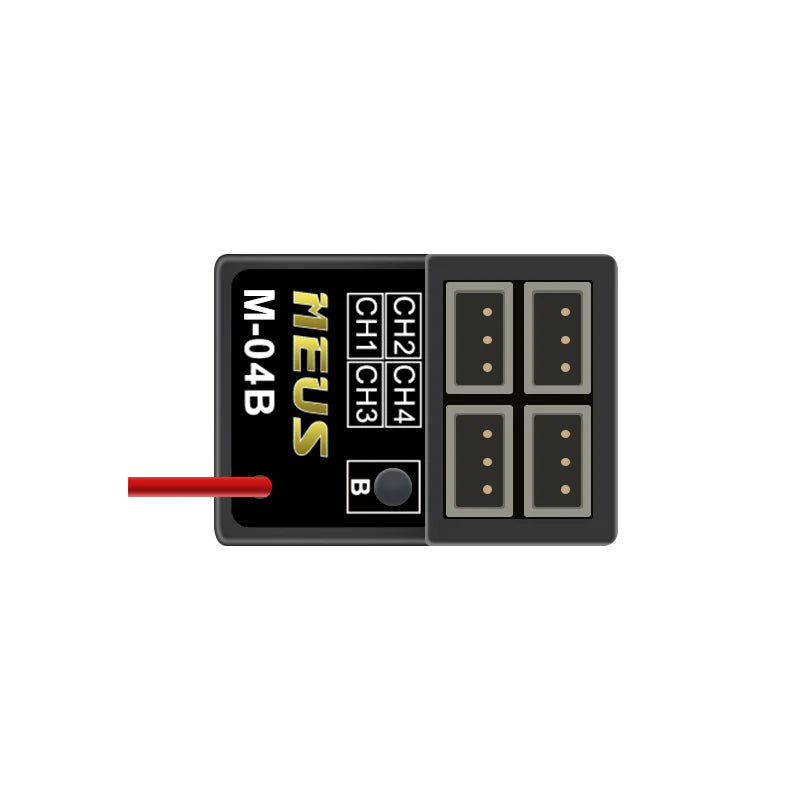

M-04B Receiver's Specifications:
- Model Number: M-04B
- Channels: 4
- Frequency range: 2.4GHz
- Working current: 20mA
- Receiving distance: 100-300m
- Info Feedback: Signal (50m)
- Input voltage: DC 4V-9V
- Voltage Feedback: No
- Dimensions: 22*15*10mm
- Gyro: No
- Weight: 3g
- Application: RC cars, RC boats, RC tanks, etc.
- CH4: CH4 is connected to the light; only the positive and negative poles can be connected, and the signal pin does not need to be connected. Using CH5 on the transmitter, you can control the LEDs connected to channel 4 on the receiver.
- CH1, CH2, CH3: All 3 channels can be connected to servos.

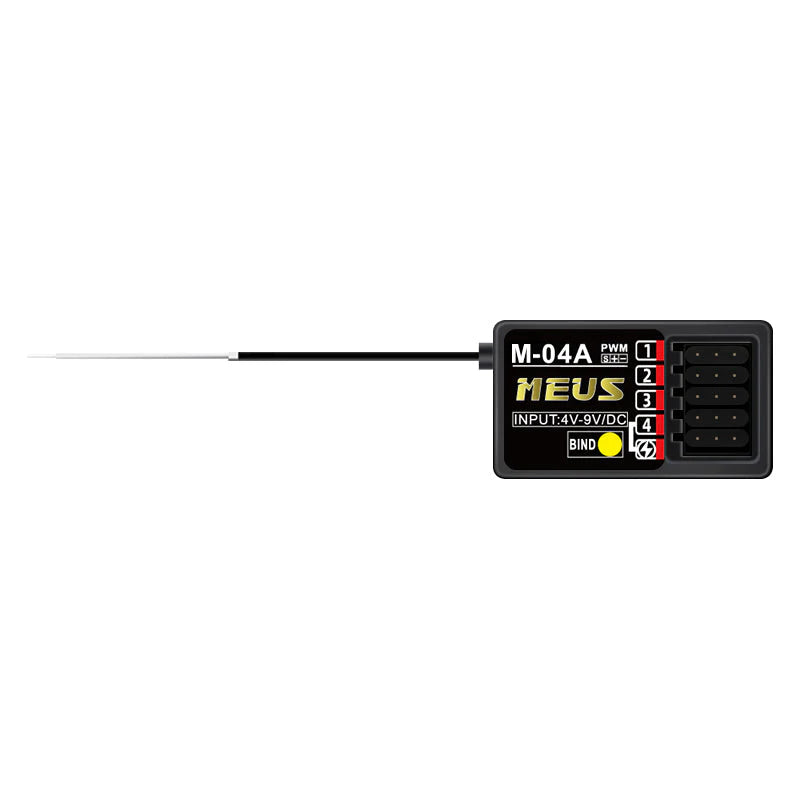

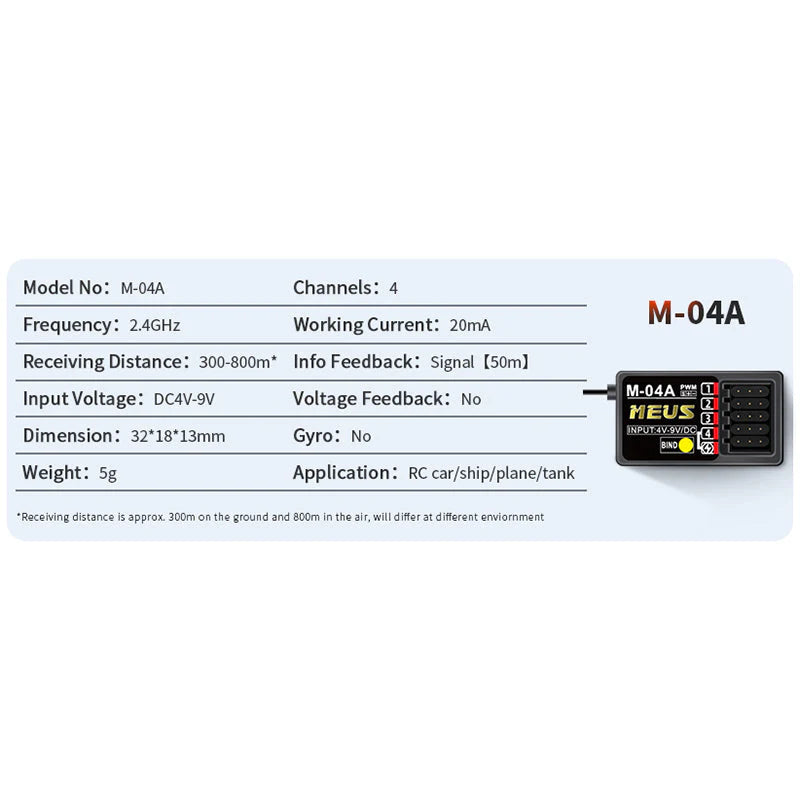

M-04A Receiver's Specifications:
- Model Number: M-04A
- Channels: 4
- Frequency range: 2.4GHz
- Working current: 20mA
- Receiving distance: 300-800m
- Info Feedback: Signal (50m)
- Input voltage: DC 4V-9V
- Voltage Feedback: No
- Dimensions: 32*18*13mm
- Gyro: No
- Weight: 5g
- Application: RC cars, RC boats, RC tanks, etc.
